Topology you
can trust.
Automatically derived from real infrastructure.
Built for operations teams and enterprise environments.
What Shumoku is
A regenerable map for real infrastructure
Shumoku treats network topology as an operational map that can be generated, updated, and trusted instead of a drawing that slowly drifts away from reality.
It can start from YAML, NetBox, LLDP, SNMP, network scans, monitoring systems, or your own APIs, then turn those sources into topology views for documentation, CI, web apps, and live operations.
Network diagrams that don't drift away from reality.
Readable
The overall shape and connection relationships are clear at a glance.
Trustworthy
The map is grounded in actual infrastructure data, not stale slides.
Regenerable
Topology can be rebuilt continuously as the network changes.
Operational
Traffic, status, alerts, sharing, and documentation live on the same map.
The Shumoku stack
Shumoku is not only a server. It is a set of libraries, renderers, tools, and apps for turning infrastructure data into maps you can operate from.
Core
Models, parsers, layout, themes, plugin types, and shared helpers. The renderer-agnostic foundation used across Shumoku.
Core docs →CLI / npm packages
Render YAML or JSON topology to SVG, interactive HTML, or PNG for Markdown, documentation, CI, and product embedding.
CLI docs →Server
A self-hosted operations app for topology management, live metrics, alert overlays, dashboards, and read-only share links.
Server docs →Editor
A visual design tool for physical topology, devices, modules, cables, project files, BOM, and PoE analysis.
Open Editor →Integrations
Define topology as code
Auto-discover from DCIM/IPAM
Discover topology via SNMP + LLDP from a seed device
Topology visualization from your infrastructure
Traffic, host status, alerts
SNMP & node exporter metrics
Webhook alerts
Hosts, metrics, and alerts from the Instant On portal
Your own data source
Define topology as code
Auto-discover from DCIM/IPAM
Discover topology via SNMP + LLDP from a seed device
Topology visualization from your infrastructure
Traffic, host status, alerts
SNMP & node exporter metrics
Webhook alerts
Hosts, metrics, and alerts from the Instant On portal
Your own data source
Features

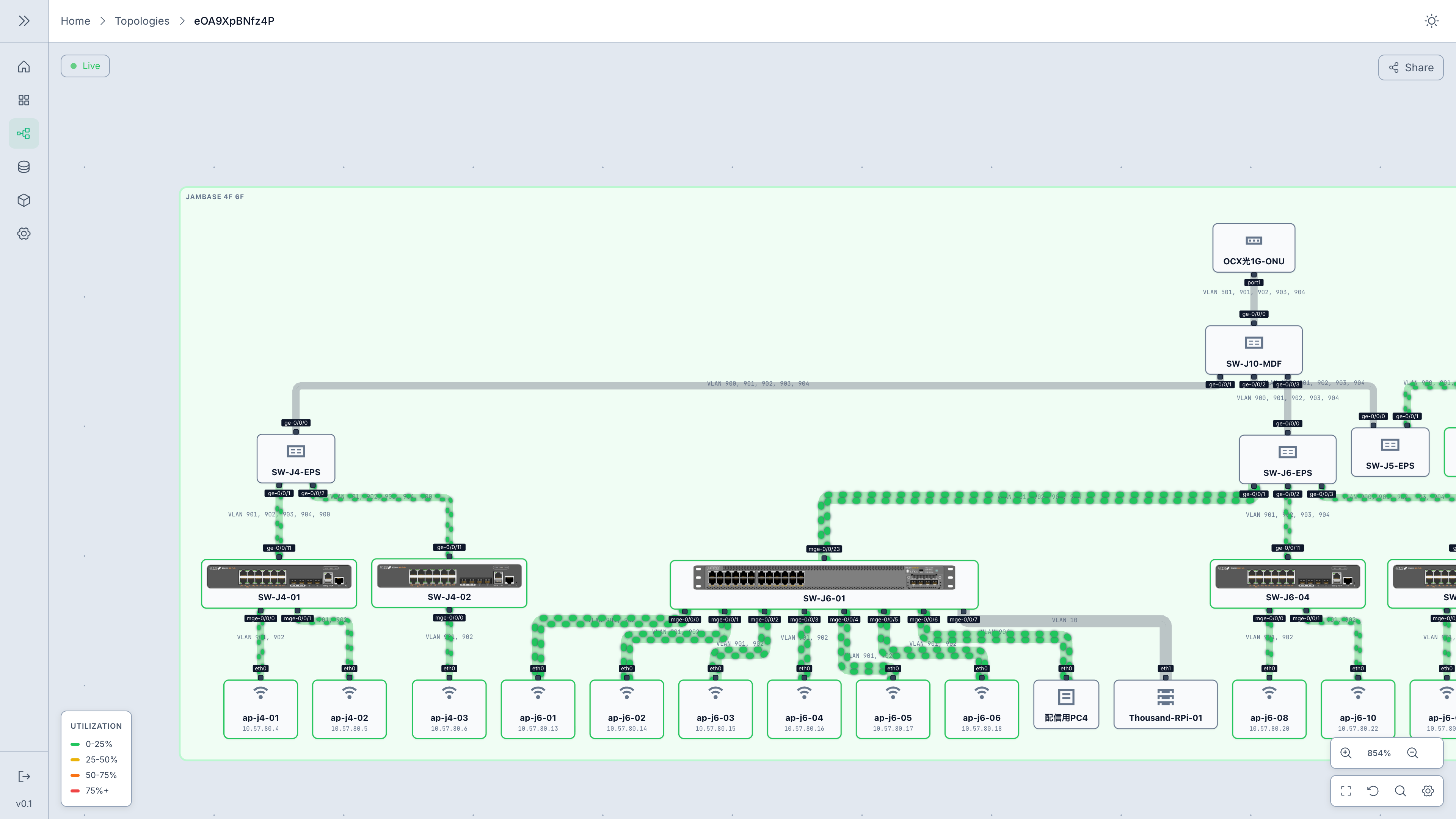

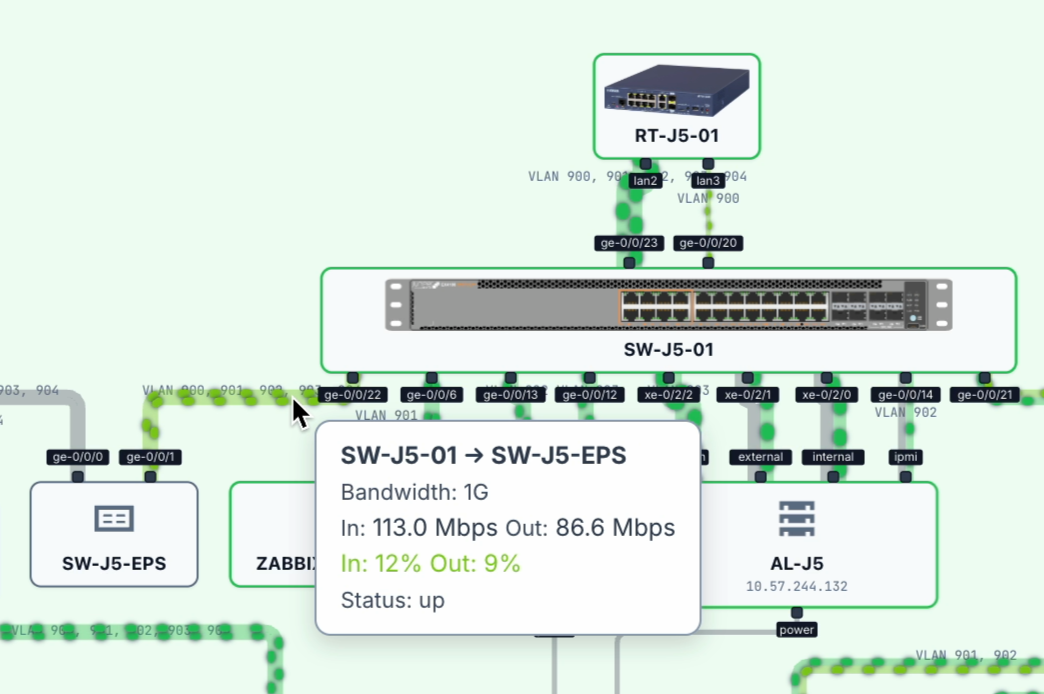

Live weathermap
Traffic utilization on links, color-coded by load

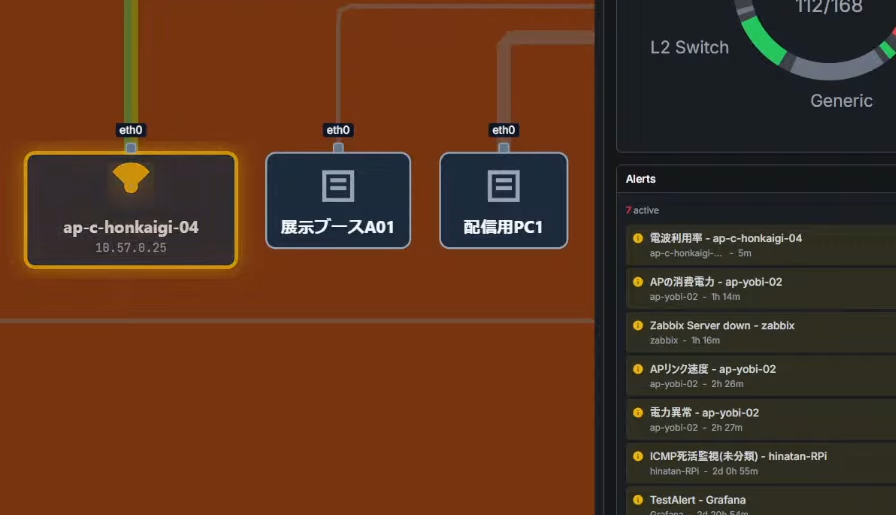

Alert overlay
Active alerts from Zabbix, Prometheus, Grafana on topology

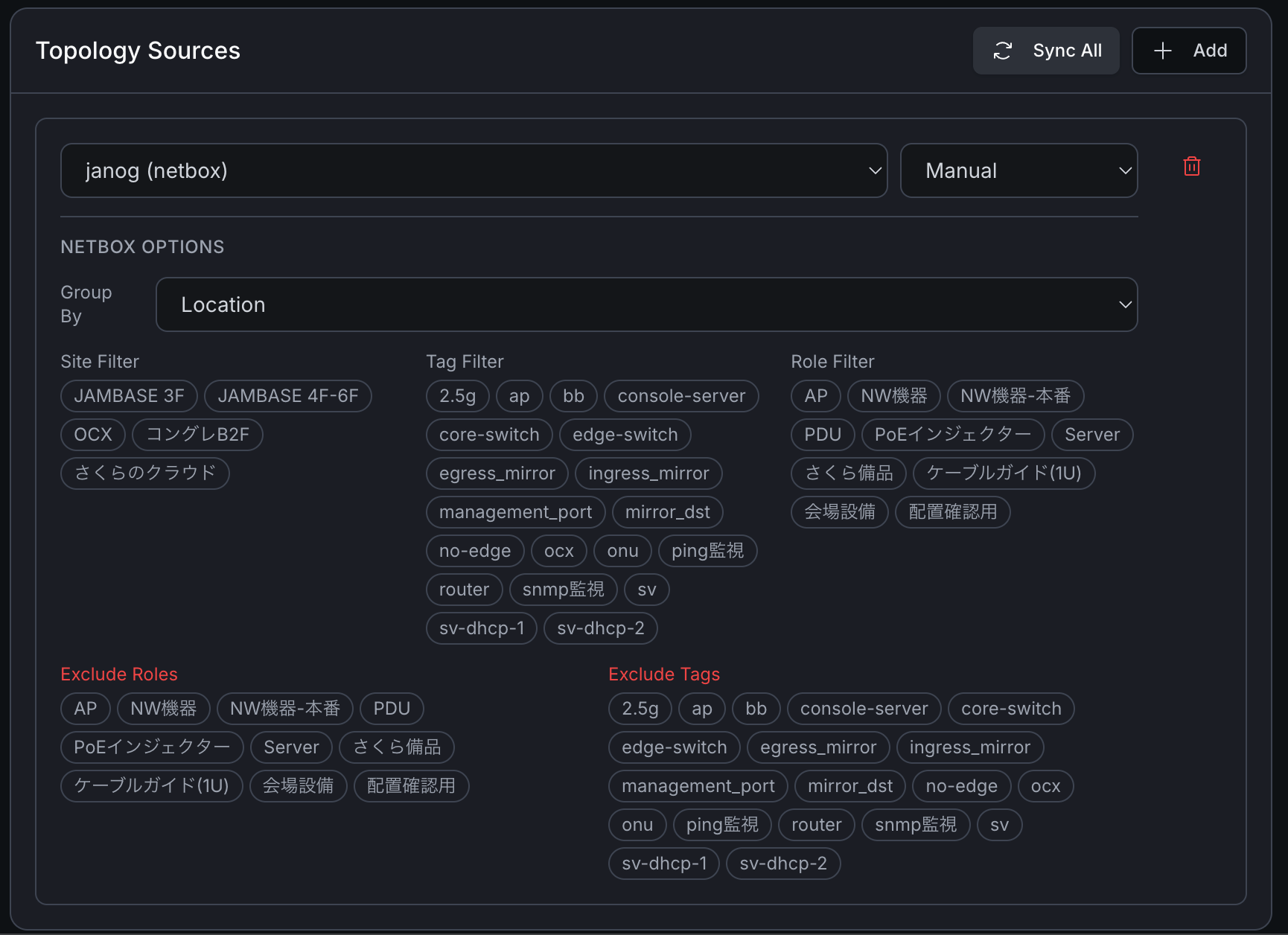

NetBox auto-generation
Devices and cables pulled directly from NetBox
900+ vendor icons
Yamaha, Aruba, AWS, Juniper — correct aspect ratios

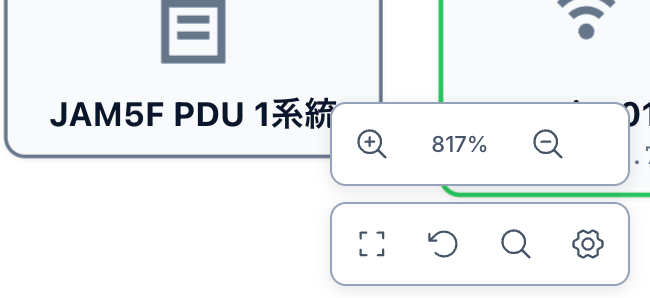

Interactive navigation
Pan, zoom, multi-layer drill-down in the browser

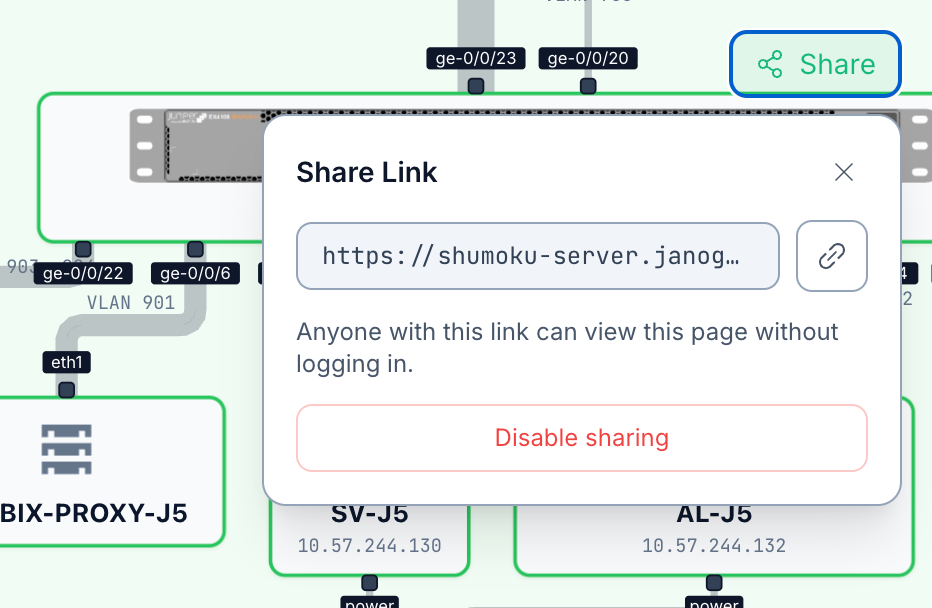

Shareable links
Public topology views with a token — no login required
Network discovery
Crawl your network via SNMP + LLDP from a seed device. No inventory required.
Custom layout engine
Purpose-built hierarchical layout engine for network diagrams. No generic graph library.
In production
Live traffic overlay — JANOG57 NOC

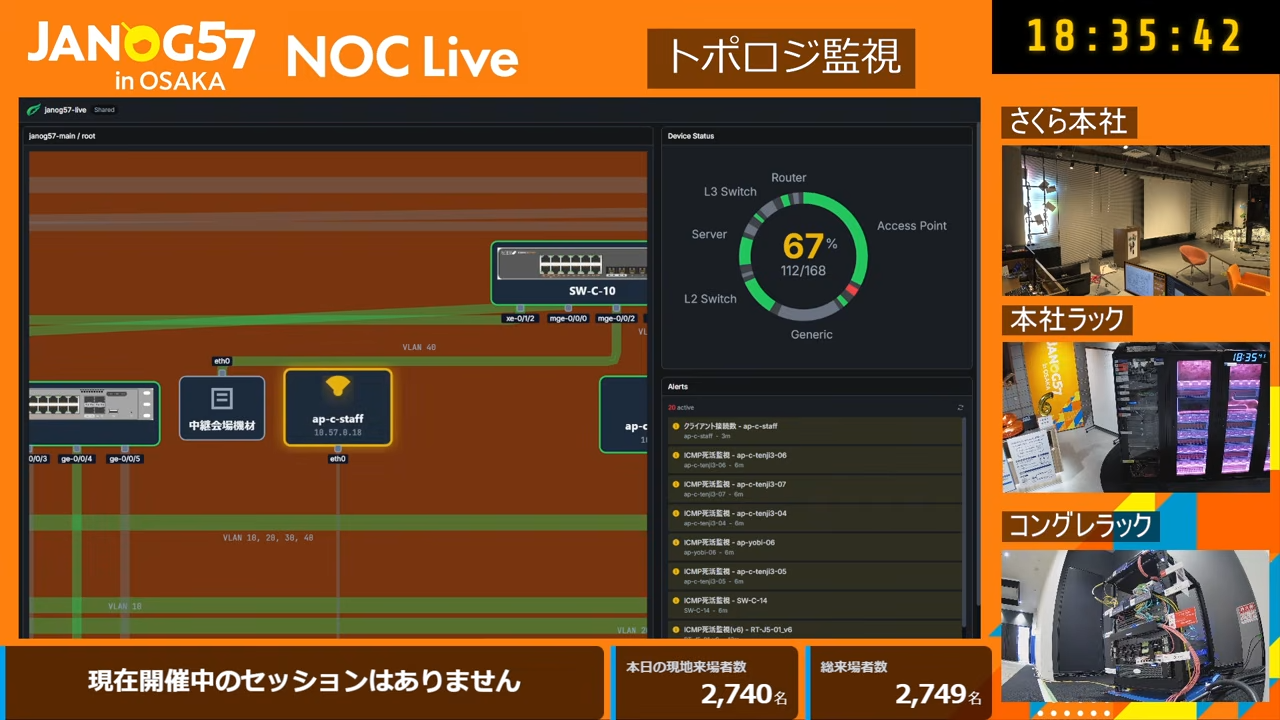

NOC dashboard — JANOG57
“Replaced static topology diagrams with auto-generated live topology. Used in production for JANOG57 NOC. Streamed on NOC Live.”
NOC BB Team — JANOG57
“Campus network monitoring with Zabbix. Live weathermaps running within a day.”
Infrastructure Team — University NOC
Start using Shumoku
- Deployment and operations support
- Data source integration assistance
- Environment-specific topology and metric mapping
- Custom plugin development and priority work
Shumoku is more than software.
It's a foundation we build together.
Build with Shumoku
Shumoku is AGPL-3.0 open source — no commercial contract required. Bugs and feature requests are public on GitHub; environment-specific work and guaranteed support are commercial. See commercial support →
Project background
About Shumoku
The name, logo, and design philosophy all point to the same idea: topology diagrams should reveal a structure that already exists in the network.
Name
The name comes from the shumoku, the striker used with a hanging bell. Shumoku aims to be a quiet support for the beginning of network operations.
Logo
The logo is modeled on Gabriel's wings: a symbol for the moment an unseen structure is brought into view.
Philosophy
A diagram should not invent topology. It should give a readable outline to the connections, paths, and dependencies already present in the infrastructure.
Commercial support
Open source first, commercial help when you need it
Shumoku is AGPL-3.0 open source software. A commercial contract is not required to use it. Paid support is a separate service for organizations that need private investigation, deadlines, or implementation help.
Support boundary
Community
Reproducible bugs, general questions, feature requests, and documentation improvements that can be discussed publicly.
GitHub Issues / Discussions / Discord
Commercial
Environment-specific investigation, private support, guaranteed response, deadline-bound work, and custom development.
contact@shumoku.dev
Commercial work can cover
Commercial support is delivered with non-exclusive partners such as TelHi Corporation (輝日株式会社). Project direction, roadmap, releases, and governance remain with the Shumoku Project.
FAQ
Is it free?
Shumoku is open source under AGPL-3.0 — free to use, no commercial contract required. We offer paid support, consulting, and custom development for production deployments.
Can AGPL-3.0 be used commercially?
Yes, as long as you follow the AGPL-3.0 terms. Commercial support does not change the software license. If AGPL does not fit your situation, contact us to discuss it.
How is it different from PHP Weathermap?
Shumoku is topology-first: multi-layer navigation, 900+ vendor icons, native data-source plugins, alerts, dashboards, and sharing without requiring Grafana.
Can I use it without monitoring tools?
Yes. Use YAML, NetBox, network scan, or a custom plugin as a standalone topology viewer. Monitoring integrations are optional.
Can I use it without NetBox?
Yes. YAML definitions, SNMP + LLDP network scan, Zabbix LLDP topology, and custom plugins are all supported paths.
What is the difference between Server and Editor?
Server is the self-hosted operations and monitoring app. Editor is the visual design tool for physical topology, devices, modules, cables, BOM, and PoE analysis.
What about commercial support?
Public bug reports, questions, and feature requests are community support on GitHub. Investigating your specific environment, private support with guaranteed response, deadline-bound work, and custom development are commercial — reach us at contact@shumoku.dev. Commercial support is delivered together with our non-exclusive partner TelHi Corporation (輝日株式会社); there is no sole official reseller of Shumoku.
See the commercial support section →
